Matrix MX-530PS

Description

The Matrix Pneumatic Speed Laminating, Foil and Spot UV system can run up to twice the speed of our standard systems. Printers can laminate work even faster to get the job finished and back to the customer.

It will laminate both sides of the printed sheet at the same time, halving your production time. Whether you gloss the front and matt the back, or use Anti-scratch film on both sides of the print, changing rolls takes a matter of minutes.

Pneumatic pressure rollers allow you to laminate and foil certain substrates up to 50% quicker, saving both time and cost.

We’ve used the highest quality components within the system, including Omron switches and Schneider electrics.

Add a Matrix OmniFlow 460 (SRA2) Deep Pile Feeder for fully automated laminating or foiling.



Key Features

  • Pneumatic pressure
  • Runs up to 20 meters/minute
  • Easy-to-use control panel
  • Anti-curl technology
  • Semi-automatic feed
  • Automatic pneumatic separator
Matrix MX-530PS

Perfect for...

Business cards
Menus
Book covers
Brochures
Flyers
Matrix MX-530PS

Product Specifications

  • Laminating Speed (m/min / feet/min)
    20m/65ft
  • Max. Laminating Film Width (mm / inches)
    510mm/13"
  • Minimum Paper Thickness (gsm)
    135gms
  • Max. Sheet Width (mm / inches)
    550mm/17"
  • Warm-up Time (mins)
    Under 10
  • Laminating Temperature Range (℃ / ℉)
    0-140
  • Control Panel
    Multi-Lingual Touchscreen
  • Pressure Adjustment
    Pneumatic
  • Film Core (mm / inches)
    77/3
  • Power Supply AC (v, 50Hz)
    220/240
  • Power Supply AC (v, 60Hz)
    240
  • Power Consumption (W)
    5000
  • Overall Dimensions (mm)
    900x2050x1400
  • Gross Machine Weight
    275kg
  • Warranty
    1 Year*
Considering purchasing a Matrix?

You'll also be interested in

Matrix Omni-Flow 380 (SRA3)

The Matrix Omni-Flow Deep Pile Feeder is a modular system that is designed to be simple...

View

Magnum MC-35AS+MKF

Crease, perforate and fold up to 100 sheets per minute with the automated MC-35AS+MKF. This...

View

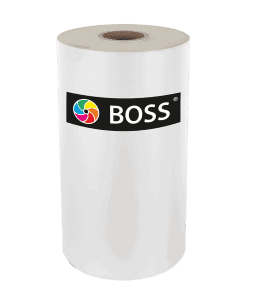

Bio-Degradable OPP Film – Matt
