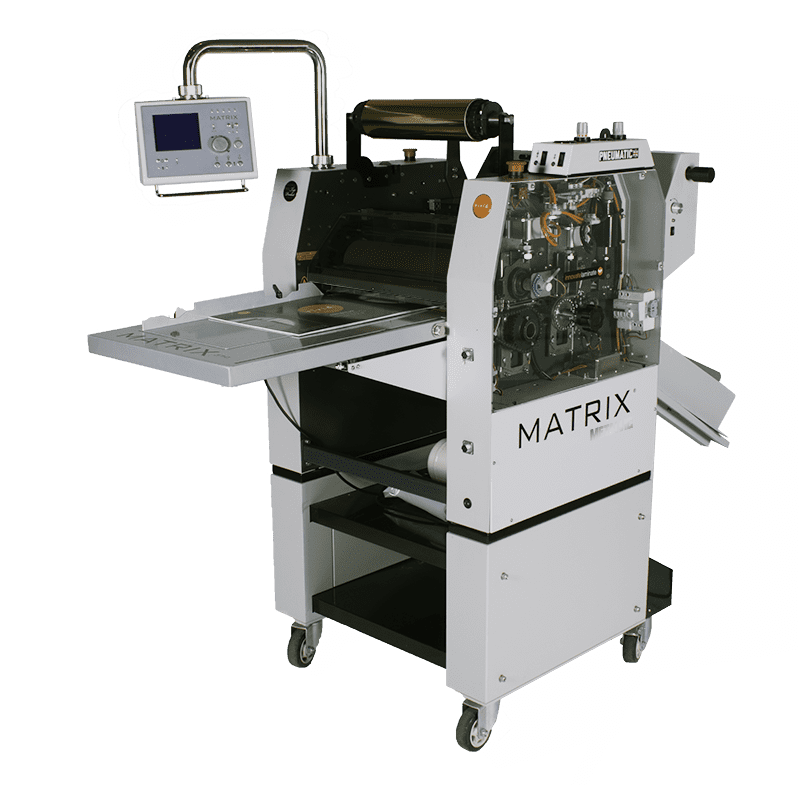

Matrix MX-370MP

Description

The Matrix Metallic™ has been designed specifically for applying digital foils and spot-UV type effects easily and economically to a wide range of coated and uncoated paper stocks.

Like its Matrix stablemates, the Matrix Metallic™ features pneumatic rollers with thermostatic temperature control. The heavy, even pressure it can apply coupled with precise heat ensures repeatable results and minimizes wastage. The easy to operate Metallic™ has been fully optimized to work better with uncoated papers, widening the choice of creative papers that can be used with digital foiling.

The Matrix Metallic™ is a modular system which means that, for example, it is fully compatible with the retrofittable Omni-Flow 370 (SRA3) Deep Pile Feeder. The feeder allows 700 sheets of paper to be stacked to feed automatically into the Matrix, speeding up production time and freeing up an operator to work on other jobs.



Key Features

  • Pneumatic pressure
  • Digital Foil and spot UV type effects
  • Supports wide range of coated and uncoated papers
  • Easy-to-use control panel
  • Anti-curl technology
  • Semi-automatic feed
  • Automatic separator
  • Supports lamination
Matrix MX-370MP

Perfect for...

Business cards
Menus
Book covers
Brochures
Flyers
Matrix MX-370MP

Product Specifications

  • Laminating Speed (m/min / feet/min)
    10m/33ft
  • Max. Laminating Film Width (mm / inches)
    340mm/13"
  • Minimum Paper Thickness (gsm)
    135gms
  • Max. Sheet Width (mm / inches)
    420mm/17"
  • Warm-up Time (mins)
    10
  • Laminating Temperature Range (℃ / ℉)
    0-140/32-284°F
  • Pressure Adjustment
    Pneumatic
  • Gross Machine Weight
    280kg
  • Control Panel
    Multi-lingual LCD
  • Film Core (mm / inches)
    77/3
  • Power Supply AC (v, 50Hz)
    220/240
  • Power Consumption (W)
    2200
  • Overall Dimensions (mm)
    800x1800x1400
  • Gross Machine Weight (Kg / lbs)
    210/463
  • Warranty
    1 Year*
