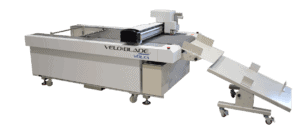

VeloBlade Volta 69

Description

With a 600x900mm bed size, the VeloBlade Volta 69 can work with sheets up to A1 and cut depths up to 2mm A rigid build comprising the most high-quality and durable parts, this system is designed to give you an impeccable finish over and over again.

It’s workflow automation, thanks to both sheet-fed and roll-fed feeding as well as vacuum suction bed and collection tray means you’ll be more productive and efficient than ever before. Leave your VeloBlade Volta to produce your packaging, POS, labels and much more, whilst you and your team dedicate time elsewhere. With multi-job management and barcode reader, you can even complete multiple jobs simultaneously as the CCD registration camera will determine the cuts, creases and perforations you’ve specified beforehand.

Work with substrates including but not limited to card, paper and labels.

Key Features

  • Up to 2mm cutting depth
  • Cut, crease & perf in a single pass
  • Manage up to A1 sheets
  • 150mm capacity auto-feeder
  • In-built roll fed production
  • Fully automated production

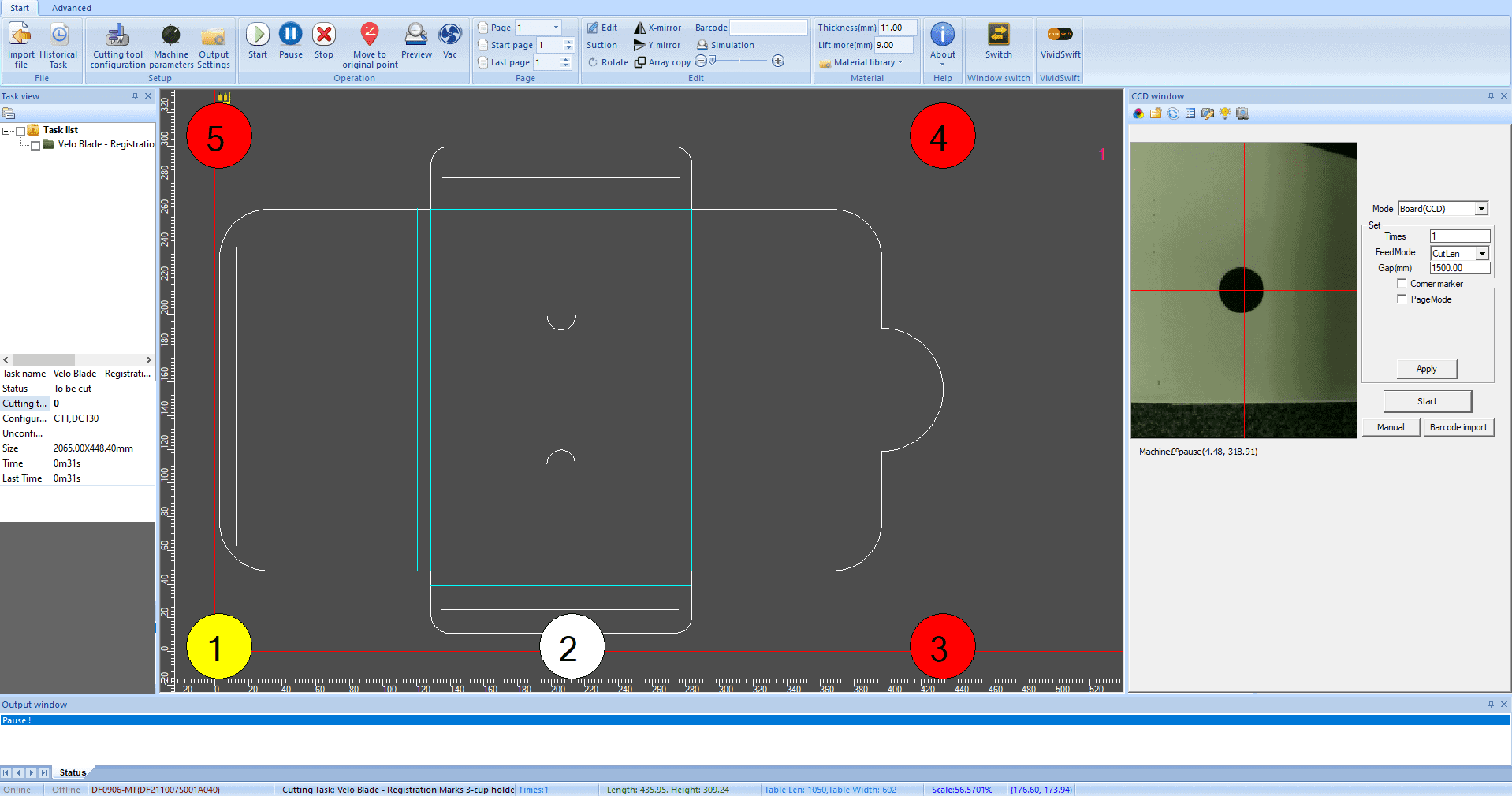

  • User-friendly Software package included
  • Multi-job management
VeloBlade Volta 69

Perfect For...

Packaging
POS
Labels
Invitations
Business Cards
VeloBlade Volta 69

Product Specifications

  • Auto sheet capacity
    150mm
  • Feeding Type
    Vacuum feed with clamps
  • Max. sheet size (mm/inches)
    900mmx600mm / 35"x24"
  • Min. sheet size (mm/inches)
    210mmx297mm / 8"x12"
  • Tools
    Rotary Knife, Creasing Wheel, Pen, Kiss Cut Knife and Camera
  • Max. cutting speed
    1000mm/s
  • Max. cut depth
    2mm
  • Cutting Media
    Card paper, PP paper, label
  • Repeat accuracy
    +0.1mm
  • Camera registration system
    CCD Registration System
  • Power Consumption (W)
    4400
  • Overall Dimensions (mm)
    3640x1250x1200
  • Gross Machine Weight
    467Kg
Interested in purchasing a VeloBlade Volta 69?
