- Automatic Tool Changer
- CNC Router for 25mm Cut Depth
- Optional Reel to Reel and Sheet Fed
- Cut, Crease & Perf in A Single Pass
- User-friendly Software Package Included
- 1500mm/s cutting speed
- Over 100 blades to choose from

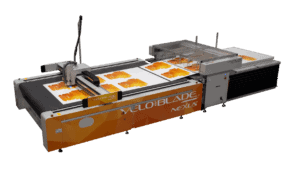

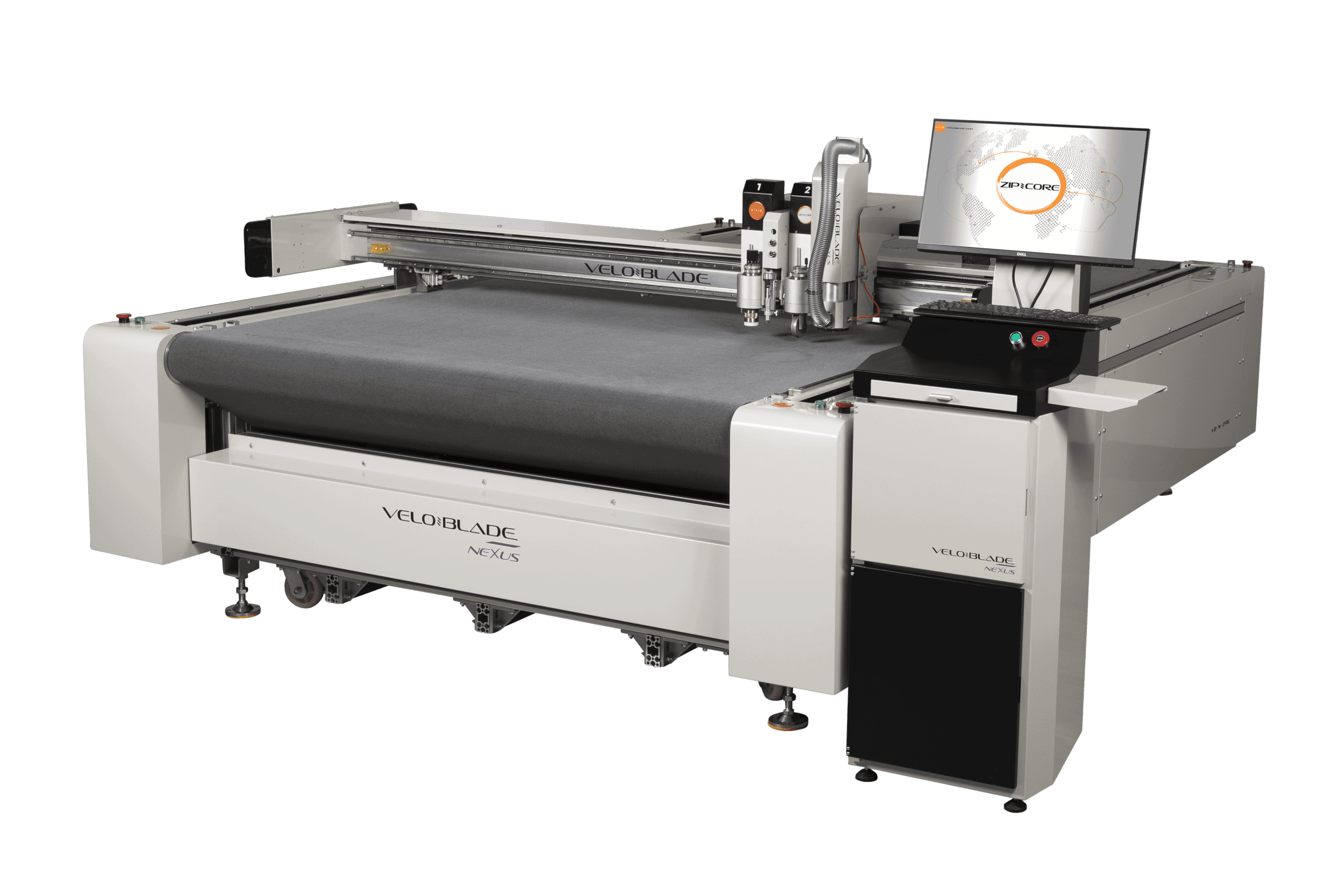

VeloBlade Nexus 3032
Description
A large format digital die cutting machine with a cutting area of 3000 x 3200mm. The CNC router, enables you to work with stocks up to 25mm in thickness, including; Dibond, MDF, acrylic and much more.
Another fantastic feature this Nexus 3016 boasts is its automatic cut depth setting. This drastically increases setup and operating speed, making the operator’s job easier and more efficient. Efficiency was one of the key considerations when this system was put together, also contributing to an efficient workplace is the rotating bed that enables roll and sheetfed production.
As well as cutting up to 25mm of harder stocks, the Nexus will also complete the same work as the VeloBlade Volta range, including kiss-cutting labels, corrugated packaging and more.
Custom sizes for the VeloBalde Nexus are available on request.
Key Features
VeloBlade Nexus 3032
Perfect For
Packaging
Outdoor Signage
Banners
POS
Indoor Signage
VeloBlade Nexus 3032
Product Specifications
- Material Fixing
- Vacuum
- Max. sheet size (mm/inches)
- 3000mmx3200mm/118”x125”
- Min. sheet size (mm/inches)
- 210mmx297mm/8”x12”
- Tools
- Circular Knife, drag knife, crease wheel, kiss cut knife, v-cut knife, oscillating knife (optional) and CNC router (optional)
- Blade
- More than 100 options
- Max. cutting speed
- 1500mm/s
- Max. cut depth
- ≤25mm** (with oscillating/routing tool)
- Cutting Media
- AS PP paper, stickers, PVC board, KT board, foamed PVC board, acrylic sheets, corrugated paper, honeycomb board, MDF and many more.
- Repeat accuracy
- +0.1mm
- Driving System
- Imported intelligent digital servo control system
- Camera registration system
- CCD registration system
- Voltage
- 32 Amp / 3 phase socket required, 1 x 16 Amp & 4 x 13 Amp sockets
- Power Consumption (W)
- 20.5
- Overall Dimensions (mm)
- 4055x4099x1377mm/160x161x54”
- Gross Machine Weight
- 2708Kg
