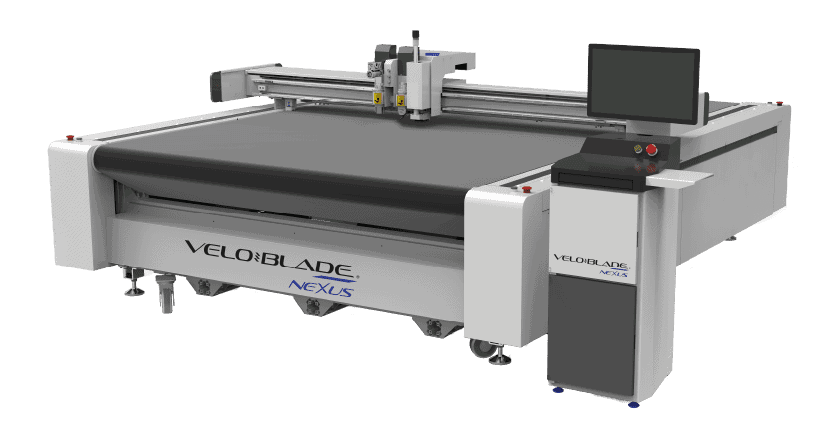

VeloBlade Nexus 1816

Description

Up to 25mm of cutting depth on a bed of 1600 x 1800mm, this VeloBlade Nexus opens up a world of creative possibilities for you and your business. Work with dibond, woods including MDF, fabrics, acrylic and much more to create all the products your customers need, on-demand!

Another fantastic feature the Nexus boasts is its automatic cut depth setting. This drastically increases setup and operating speed, making the operator’s job easier and more efficient. Efficiency was one of the key considerations when this system was put together, also contributing to an efficient workplace is the rotating bed that enables roll and sheetfed production.

As well as cutting up to 25mm of harder stocks, the Nexus will also complete the same work as the VeloBlade Volta range, including kiss-cutting labels, corrugated packaging and more.

Custom sizes for the VeloBalde Nexus are available on request.

Key Features

  • CNC Router for 25mm Cut Depth
  • Optional Reel to Reel and Sheet Fed
  • Cut, Crease & Perf in A Single Pass
  • User-friendly Software Package Included
  • 1500mm/s cutting speed
  • Over 100 blades to choose from
VeloBlade Nexus 1816

Perfect For

Packaging
Outdoor Signage
Banners
POS
Indoor Signage
VeloBlade Nexus 1816

Product Specifications

  • Material Fixing
    Vacuum
  • Max. sheet size (mm/inches)
    1800mmx1600mm / 71"x63"
  • Min. sheet size (mm/inches)
    210mmx297mm / 8"x12"
  • Tools
    Circular Knife, Drag Knife, Crease Wheel, Kiss Cut Knife, V-Cut Knife, Oscillating Knife and CNC Router (Optional)
  • Blade
    Over 100 Options
  • Max. cutting speed
    1500mm/s
  • Max. cut depth
    25mm with Oscillating Knife/ CNC Router)
  • Cutting Media
    AS PP Paper, Label, PVC Board, KT Board, Foamed PVC Board, Acrylic Sheet, Dibond, Vinyl, Corrugated Paper, Honeycomb Board and Many More
  • Repeat accuracy
    +0.1mm
  • Driving System
    Imported Intelligent Digital Servo Control System
  • Camera registration system
    CCD Registration System
  • Voltage
    32 Amp / 3 phase socket required & 4 x 13 Amp sockets for accessories
  • Power Consumption (W)
    11500
  • Overall Dimensions (mm)
    2850x2780x1240
  • Gross Machine Weight
    830Kg
