Magnum MC-35A

Magnum MC-35A

Description

The Magnum MC-35A is our entry-level automatic creasing and perforating system that also the ability to cross-perforate. Create rapid professional results with a range of preset programs, meaning your system is always ready to use with minimal setup.

The 110mm vacuum pile feeder along with set you up for automated production. Also, patented Sniper Technology so there is no need to input measurements for crease position, simply put a pen mark or printed mark where you want the crease and the Magnum does the setup for you.

Key Features

  • High precision crease position
  • EASY OPERATION
  • OPTIONAL SLIDE-IN TOOLS
  • AUTO COMPENSATION OF ACCURACY ACCORDING TO PAPER THICKNESS
  • CREASE DEPTH AND SKEW ADJUSTMENT
  • PROGRESSIVE FUNCTION
  • TIME SAVING WITH THE ABILITY TO CREASE/PERF
  • SUPPORTS LAMINATED STOCKS
Magnum MC-35A

Perfect for...

Menus
Book covers
Leaflets
Magnum MC-35A

Product Specifications

  • Infeed
    Automatic
  • Min. Paper Size
    50x90mm
  • Max. Paper Size
    330x645mm
  • Max. Paper Thickness (gsm)
    350
  • Paper Type
    Chrome, Laminated, UV Coated etc
  • Accuracy
    +/-0.2mm
  • Max. Speed
    Up to 75 sheets/minute (A4/1 Crease)
  • Crease/Perf in one pass
    Up to 32 times
  • Output Capacity
    100mm
  • Creasing Width
    Interchangeable crease (0.6, 1, 1.2, 1.4mm)
  • Control and Display
    Keyboard and LCD Screen
  • Program Memory
    30
  • Progressive Function
    Standard
  • Feeding Type
    Top suction feed
  • Gross Machine Weight
    50kg
  • Warranty
    1 Year*
CONSIDERING PURCHASING A MAGNUM?

YOU'LL ALSO BE INTERESTED IN

Magnum MCC-35ASP

Our premium automatic cut, crease and perforation full-bleed finishing system. The MCC-35ASP is equipped with...

View

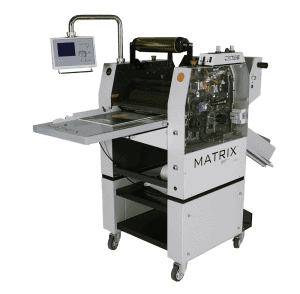

Matrix MX-370MP

The Matrix Metallic™ has been designed specifically for applying digital foils and spot-UV type effects...

View

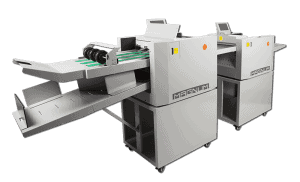

Magnum MC-35AS+MKF
