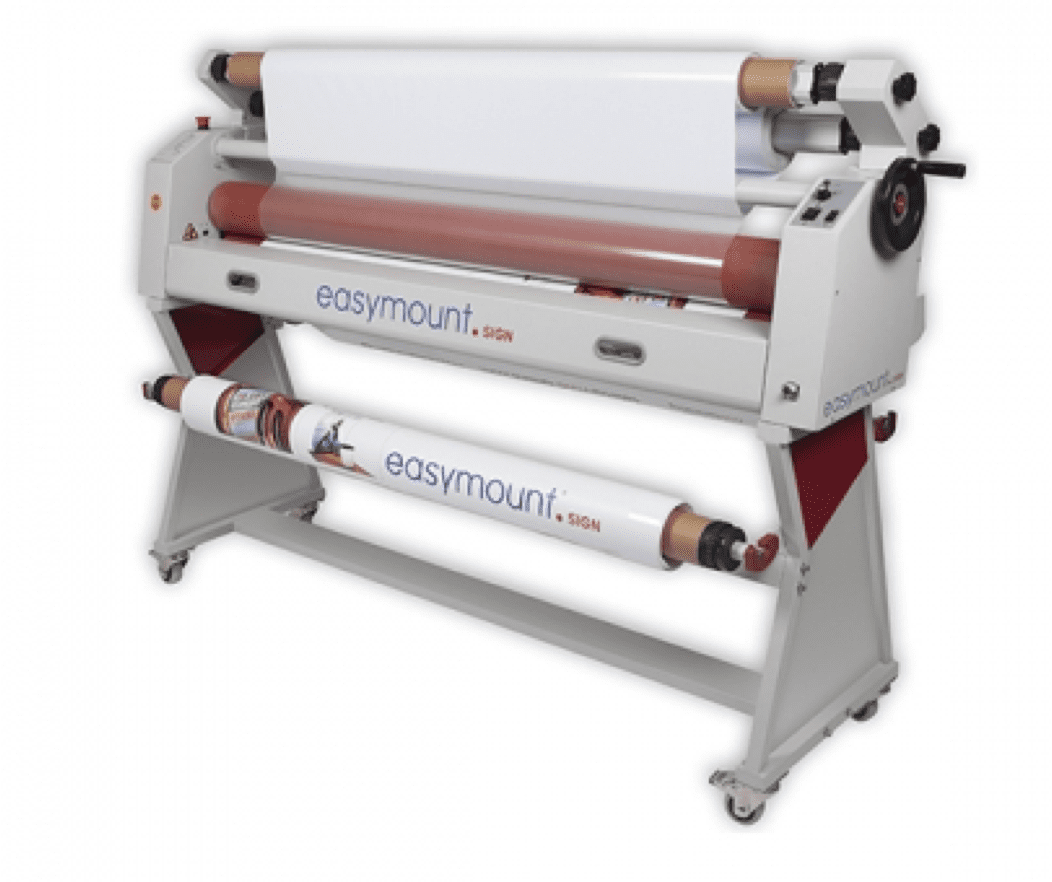

Easymount Sign 1600 Hot

Description

A single hot roller wide-format laminator, suitable for jobs up to 1600mm. Perfect for reel to reel laminating, the Easymount Sign Hot range of systems come equipped with an integrated take-up unit that can hold up to 50m/164ft of artwork.

Built-to-last using the highest quality heavy-duty components, an EM-S1600H is the ideal system for outdoor signage, posters, pop-up graphics, mounting boards to print and much more!

Key Features

  • Up to 5m/16ft a minute
  • 25mm / 1" mounting thickness
  • Variable speed control
  • Integral media take-up unit
  • Self gripping mandrels
  • Magic eye safety feature
  • Single lift mechanism
  • Heavy duty construction
  • Release liner take-up
  • Large rollers
  • Handy reverse mechanism
  • Foot pedal
Easymount Sign 1600 Hot

Perfect for...

Single banners
Reel to reel laminates
Posters, graphics and signs
Mounting prints to boards
Pop-up displays
Applying vinyls, tapes and adhesive films
Outdoor signage
Easymount Sign 1600 Hot

Product Specifications

  • Laminating Speed (m/min / feet/min)
    5 / 16
  • Max. Sheet Width (mm / inches)
    1620 / 64
  • Mounting Thickness (mm / inches)
    25 / 1
  • Roller Diameter (mm / inches)
    130 / 5
  • Pressure Adjustment
    Manual
  • Film Core (mm / inches)
    77 / 3
  • Power Supply AC (v, 50Hz)
    220/240
  • Power Supply AC (v, 60Hz)
    110
  • Power Consumption (W)
    38
  • Dimensions - Width (mm / inches)
    1846 / 73
  • Dimensions - Depth x Height (mm / inches)
    550 x 1365 / 22x54
  • Gross Machine Weight (Kg / lbs)
    136 / 300
  • Warranty
    1 Year*
